Locksmithing is a profession that thrives on precision and a deep understanding of various lock mechanisms. If your aim is to master the craft, it’s essential to understand the anatomy of different lock types. Whether you’re a locksmith professional or an enthusiast, this guide will help you break down the internal workings of common locks and enhance your knowledge.
Pin Tumbler Locks: The Standard Choice

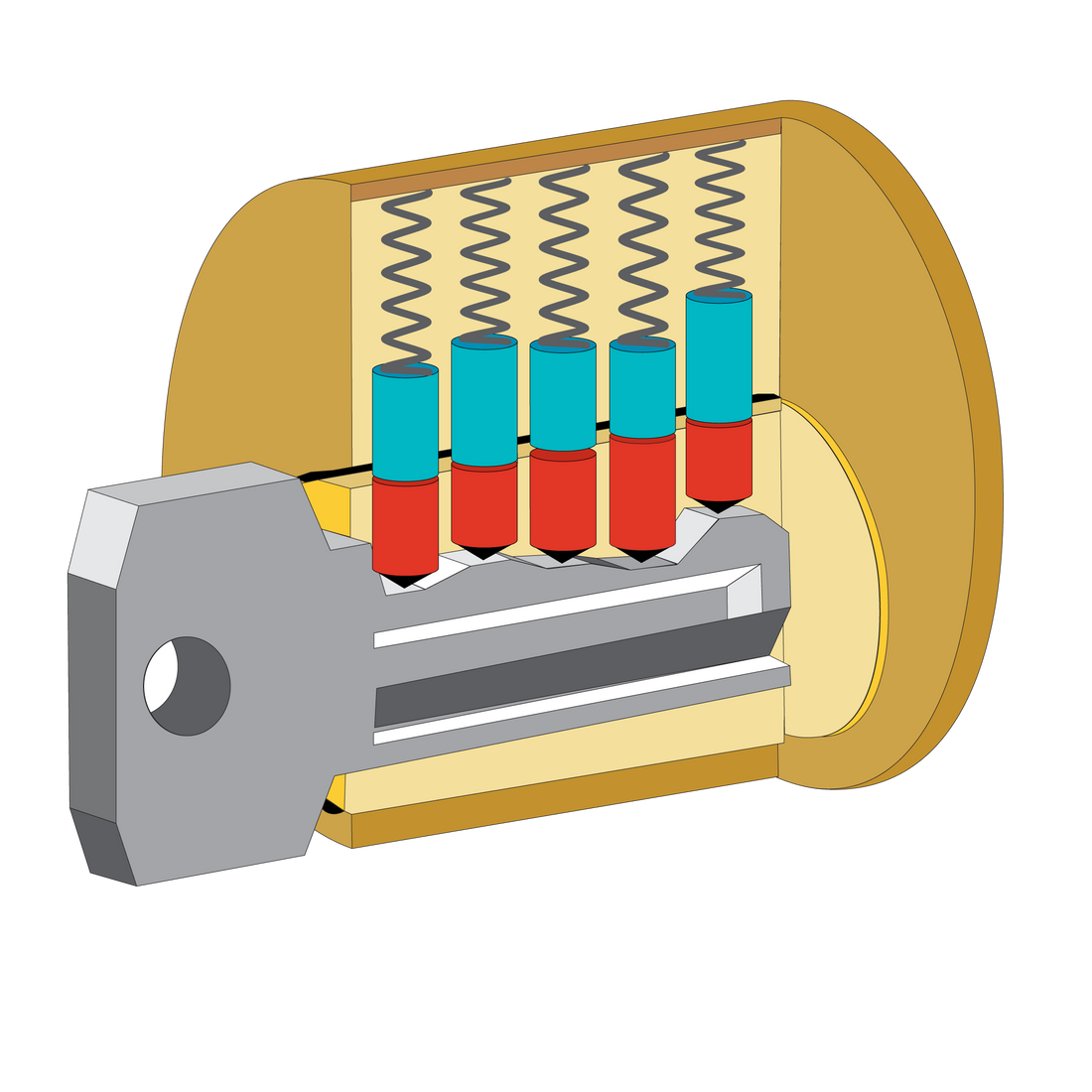

Pin tumbler locks are common throughout residential and commercial settings. Inside the lock cylinder, there is a row of pin chambers, or columns, that house the lock’s pins. The pins are stacked on top of each other, with a cone-tipped key pin sitting at the bottom of each pin stack and a driver pin resting on top of each key pin. A spring sits at the top of each pin stack and applies tension to the pins.
The key and driver pins vary in size, and while in their resting position, they block the space between the lock’s plug and cylinder (the shear line), preventing the plug from turning.
When the correct key is inserted into the lock, with the cuts of the key corresponding to their respective pin stacks, the key lifts the pins so that the key pins align evenly with the shear line, allowing the plug to turn and the lock to disengage.
This simple mechanism makes pin tumbler locks reliable, but they are also susceptible to picking techniques, especially for those with the right tools and skills.
Wafer Locks: A Variation on Pin Tumblers
Wafer locks share similarities with pin tumbler locks, but instead of pins, wafer locks use flat wafers that must align with the shear line. They are more commonly used in less secure environments and structures, such as filing cabinets or mailboxes.
As with pin tumbler locks, the correct key aligns the wafers to the shear line, allowing the lock to turn. Although they function similarly to pin tumbler locks, wafer locks are generally easier to manipulate and can often be compromised with a set of try-out keys.
Warded Locks: A Historical Classic
Warded locks are one of the oldest types of lock mechanisms, often found in historical buildings and antique furniture. Because they have less internal moving parts, they are more resistant to the elements and are often chosen for low-security outdoor settings.
Warded locks operate with a series of protrusions, or wards, that guard the lock’s core. The key used in a warded lock is simple; it contains the necessary notches to bypass the wards and reach the locking mechanism.
As the key turns inside the lock, its specific shape allows it to move past these barriers, eventually engaging the bolt or tumbler to open the lock. Due to their simplistic design, warded locks are vulnerable to bypass with skeleton keys or warded picks, which can clear the wards and unlock the mechanism without requiring the precise pattern of a unique key. Consequently, while they offer basic security, and while antique warded locks offer a charming historical aesthetic, they do not make the best choice for securing valuable or sensitive items.
Disc Detainer Locks: Increased Security

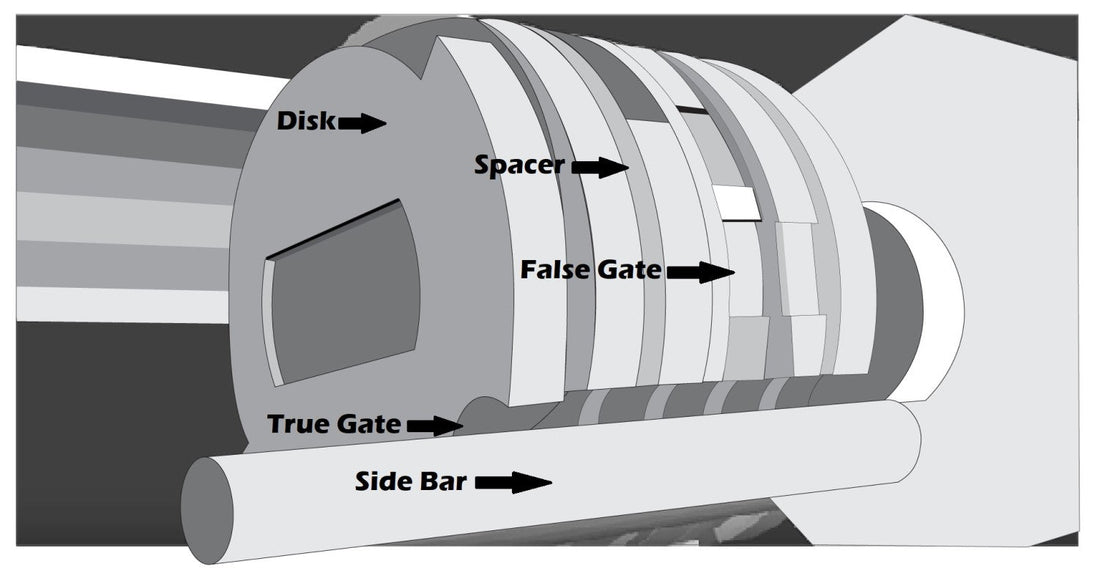

Disc detainer locks are popular for high-security applications, such as warehouses and storage facilities. Instead of pins or wafers, they use rotating discs. Each disc has a small cut-out on its edge called a true gate.
The discs are rotated so that, when their true gates are aligned perfectly with each other, a sidebar inside of the lock drops into them, releasing the locking mechanism and allowing the lock to turn. The discs may also have “false gates,” or cut-outs that are shallower than the true gate and give a false sense that the sidebar is set, making picking the lock more difficult.
The unique design of disc detainer locks makes them more resistant to picking and drilling than pin tumbler locks, adding an extra layer of protection. Locksmiths looking to specialize in high-security locks may encounter these types more frequently.
Smart Locks: The Future of Locking Systems
Smart locks have become popular due to their advanced technology and convenience. These locks use digital signals instead of traditional keys to unlock doors controlled by smartphones or keypads.
Inside, smart locks still contain mechanical components, but they rely on electronics to function. Understanding how to troubleshoot the hardware and software of smart locks is essential for modern locksmiths.
Understanding the anatomy of different lock types is fundamental for locksmith professionals and enthusiasts. Whether you’re dealing with pin tumbler locks, wafer locks, warded locks, disc detainer locks, or smart locks, each lock requires a distinct approach.
As technology evolves, locksmiths must stay informed to meet the changing demands of the industry. For anyone needing quality locksmith tools and supplies, investing in equipment from SouthOrd can make all the difference in mastering these locks and serving clients effectively. Contact us today for more information about our locksmith products.
